◆product parameters


working area

30x18x4.5cm

Frame size

33x40x24cm

Mesa

30x18cm

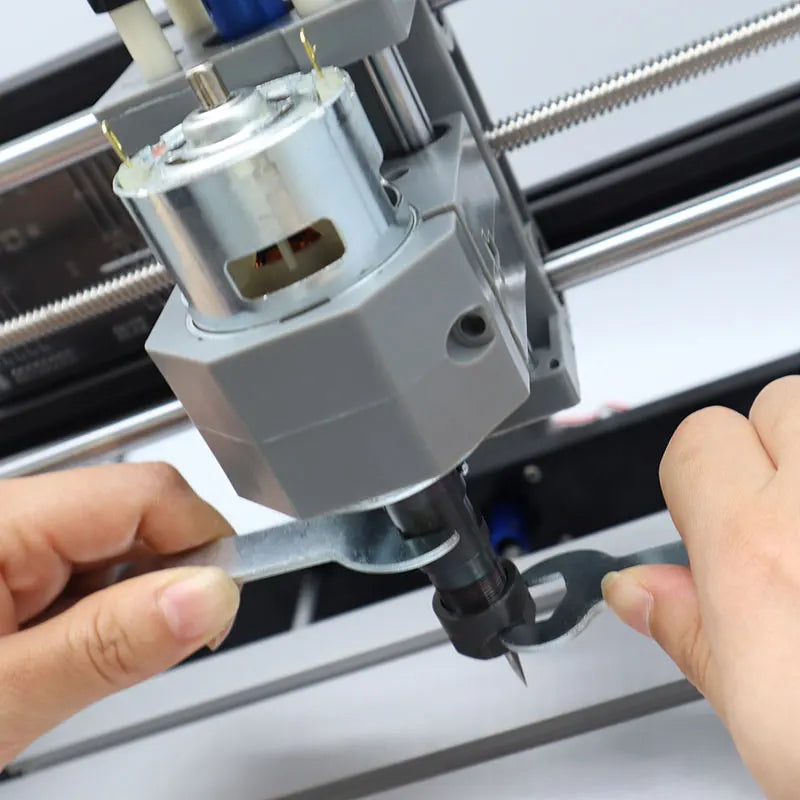

Spindle

775 spindle motor (12-36V) 24V: 10000r/min



Spindle Chuck

ER

Step motor

Fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M

Power supply

24V 5.6A

Software

GRBL controller

supported system

Windows(Do not support Mac)



Drill bits

tip 0.1mm ,20 degree , diameter3.175mm.the package include 10pc

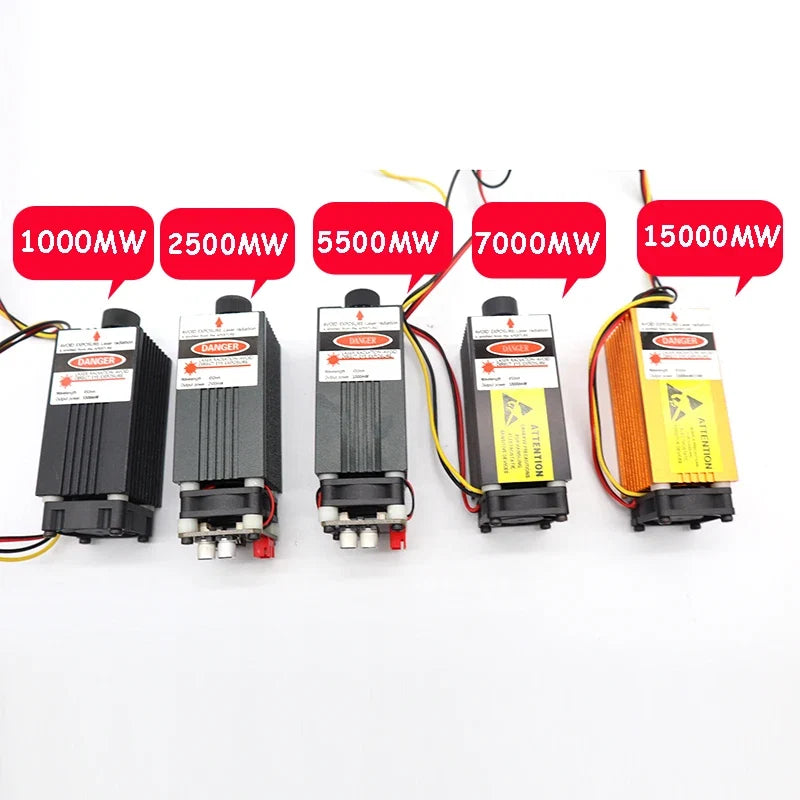

Laser

1000mw 405nm, 12v 2500mw 450nm, 12v 5500mw 450nm

clamps

4 pcs, Hold the thickness of 0-30mm,size: 50 * 20 * 3 (length * width * thick), the inner slot width 6mm



◆Important reminder

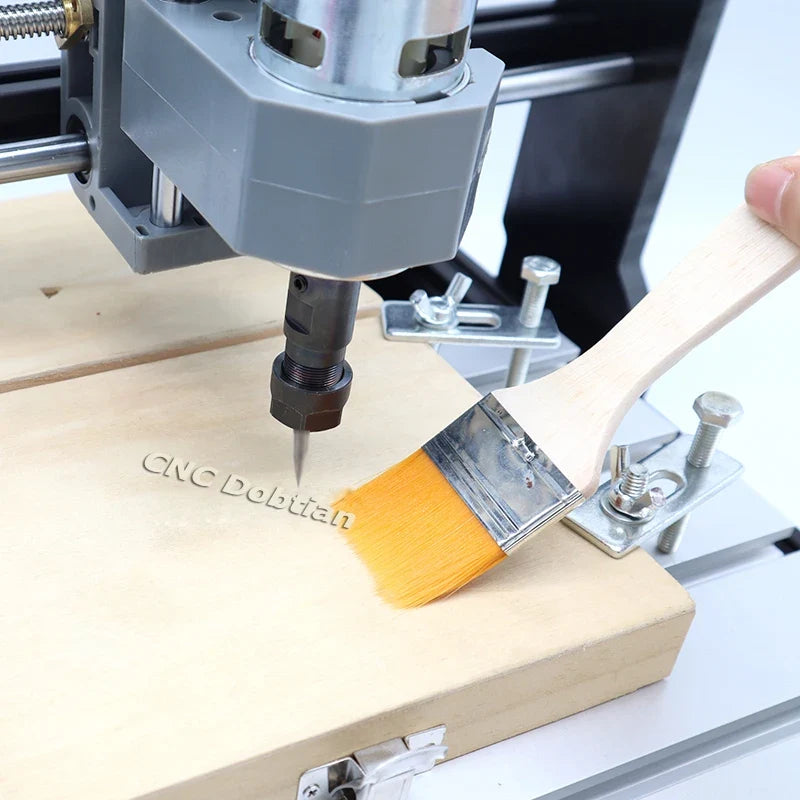

1. Three-axis engraving: wood, plastic, PCB, acrylic, plywood, etc.

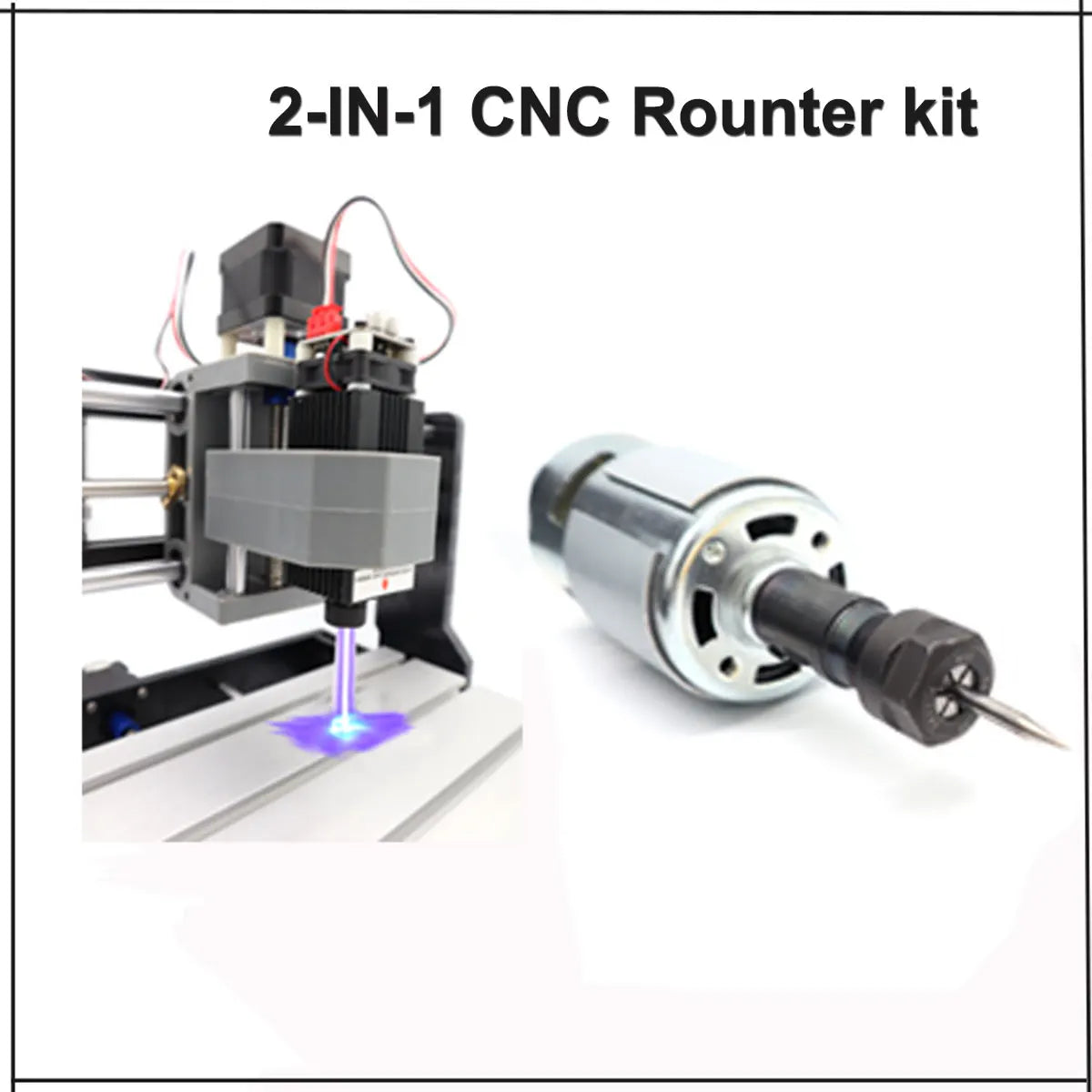

2. Laser engraving: wood, plastic, leather, bones, stone, paper, outer casing, etc.

3. We have a 10w laser that can engrave metal materials such as stainless steel and alumina.

4. The blade can be engraved with plastic, wood, acrylic, pvc, pcb, wood or similar material

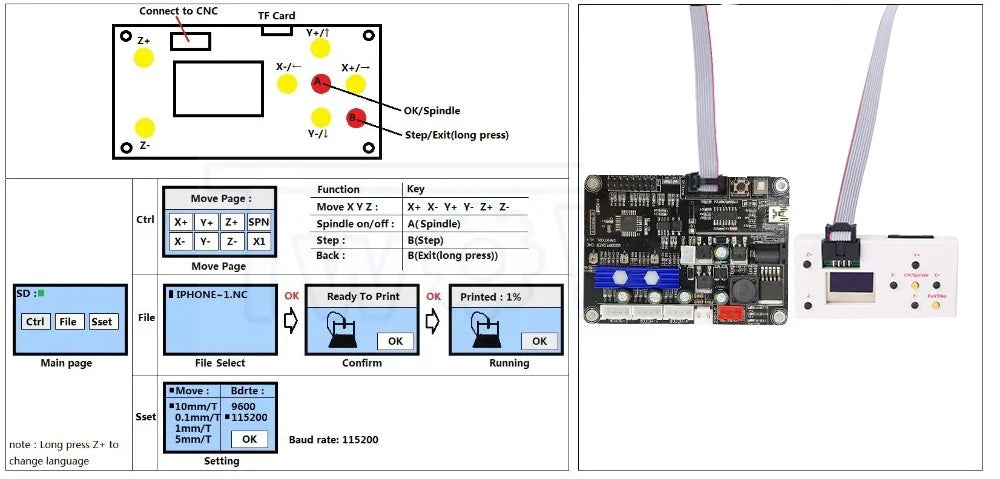

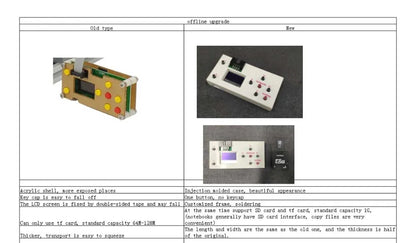

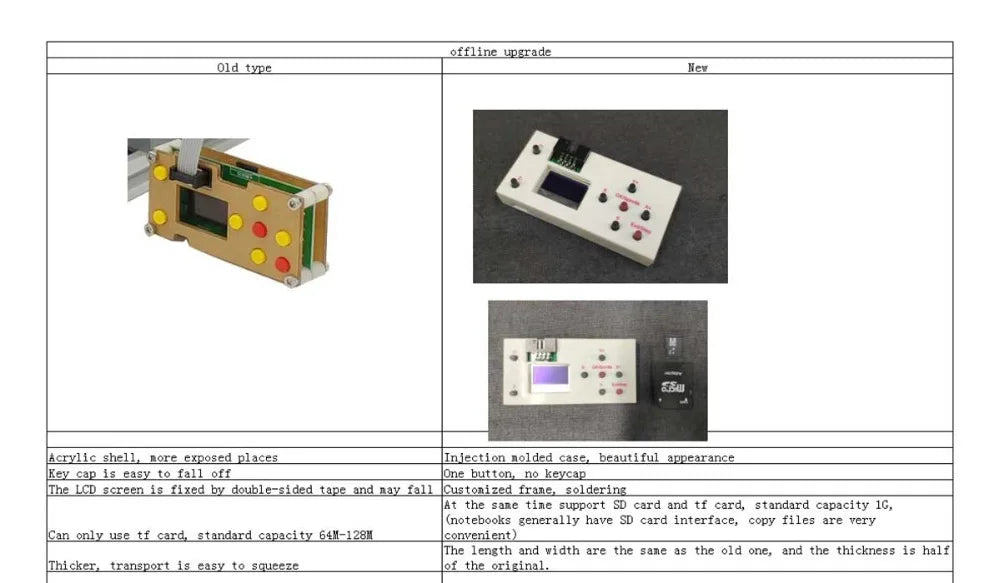

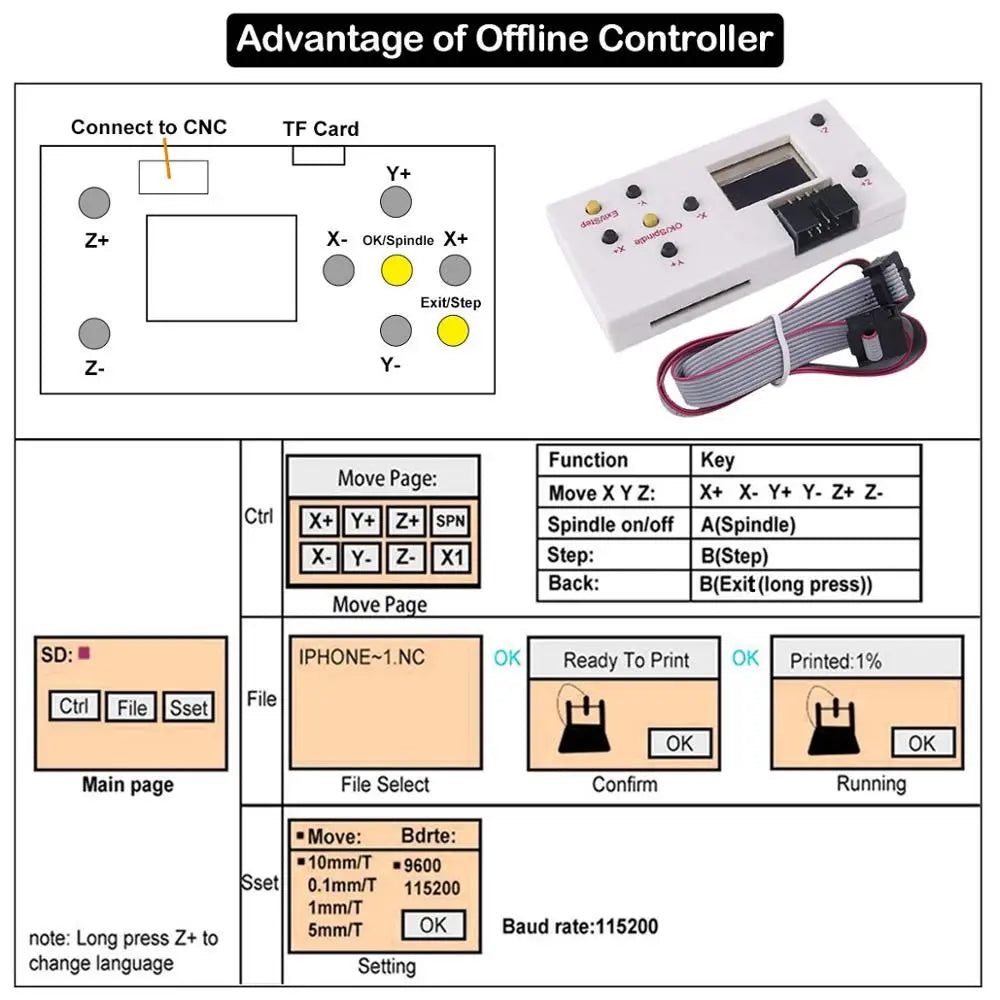

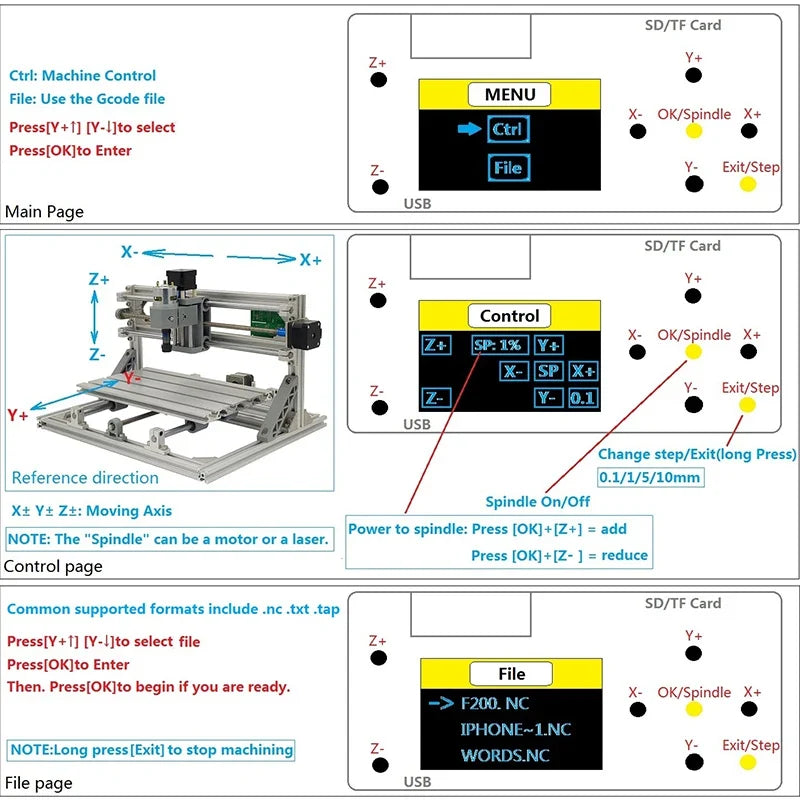

5. Offline controller supports offline work, you do not need to connect to the computer

7. We have EU and US adapters and I will send the correct plugs according to your country.

8. If you need more accessories, please contact me and hope to become your permanent agent in China.

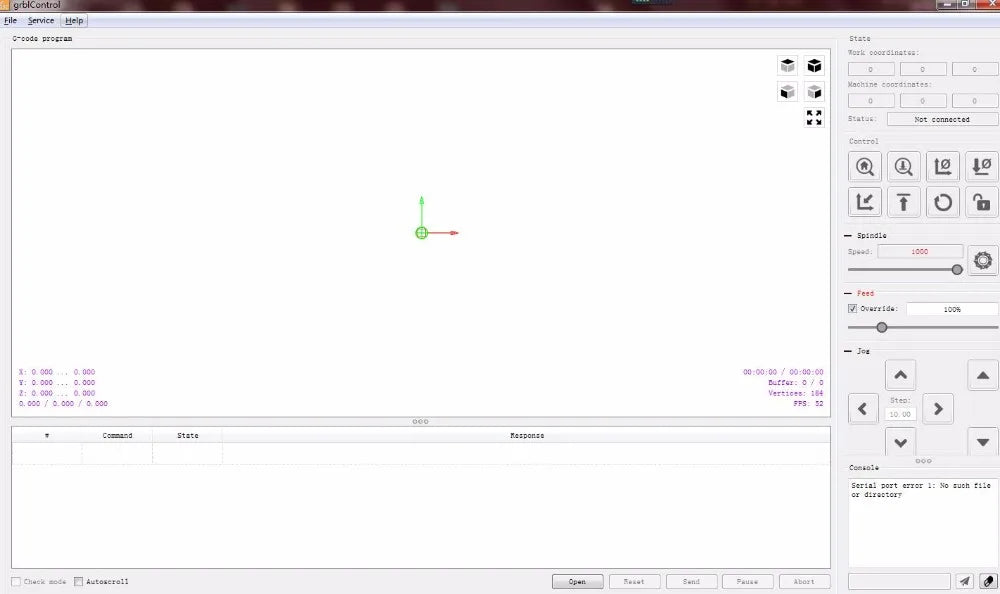

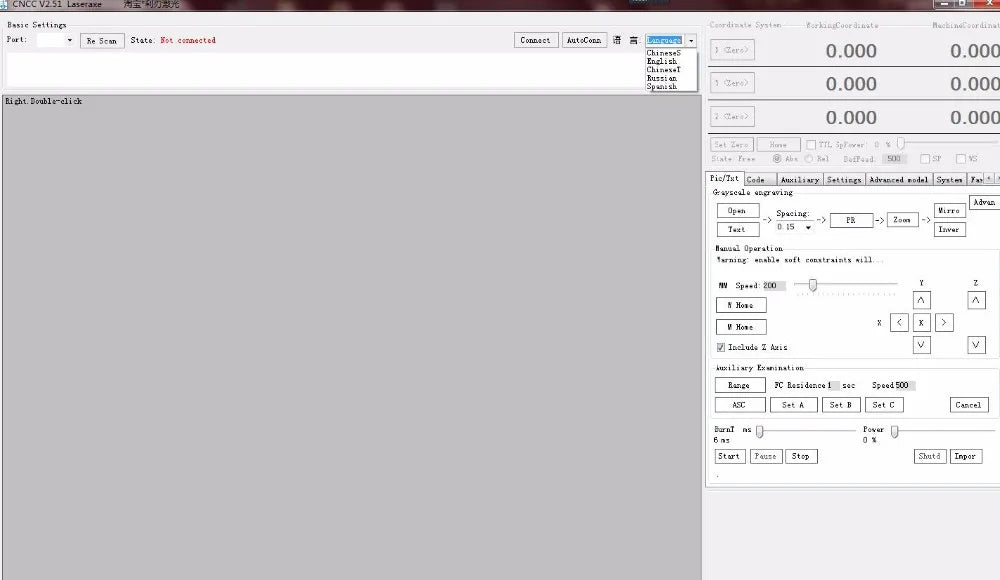

◆About software

Regarding software, you can get it through these three methods:

1. The engraving machine we sent is equipped with a U disk, which contains post software and installation instructions.

2.. You can provide me with your email address and I can send you software and installation instructions.



◆About transportation

1, we will send all parcels in DHL, the estimated time of receipt of the package: 5-8 days

2, all Asian countries will be sent by FedEx, expected to receive parcel time: 3-5 days

3, Russian buyers order, we will ship from the Russian warehouse, major cities: 5-10 days, remote areas: 15-30 days

4. If there is no stock in the Russian warehouse, please choose to ship in China.

◆Warranty service

We will provide a one-year warranty and we will solve all your after-sales problems!
We will check all goods before sending to ensure you receive high quality products!
If any parts are damaged within 15 days after receiving the product, we will send you a new part for free!

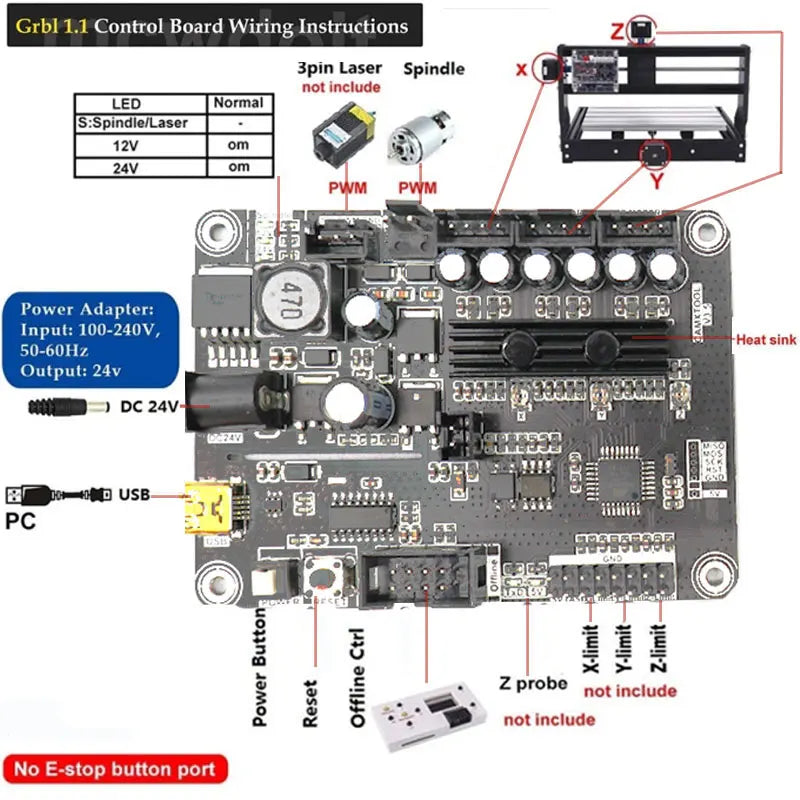

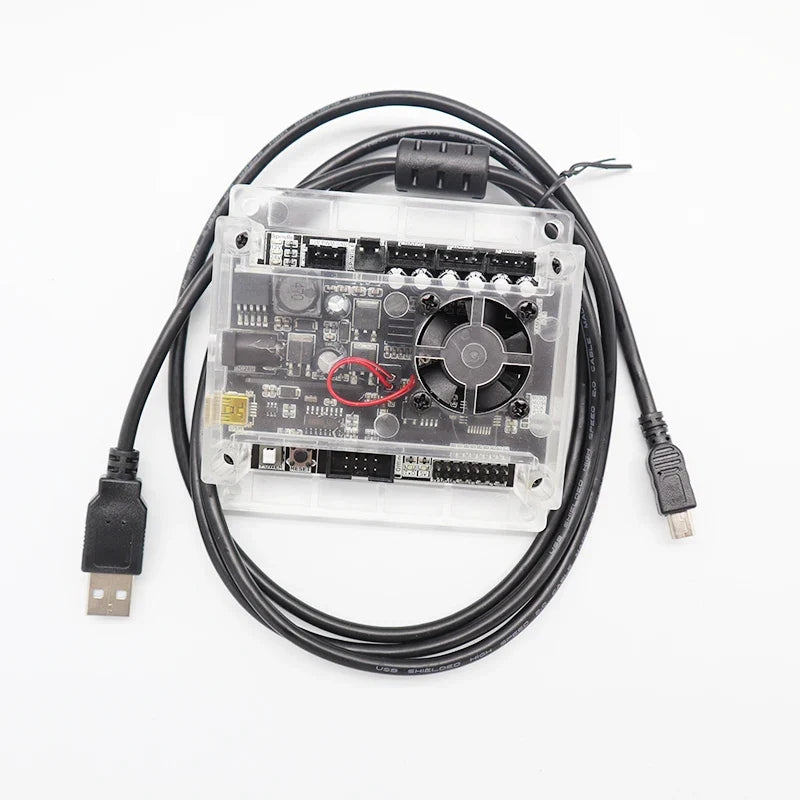

◆Upgrade control board

1, improved power interface: the original plastic interface changed to all metal shielded interface.

2, perfect USB interface: the original USB interface is patch soldering, collision and improper use during transportation, easy to drop, now it is plug-in type, very strong.

3, the spindle drive increases the isolation of the optocoupler, so that the control board generates less heat, the spindle speed adjustment is more linear and safe.

4. Replace the stepper motor driver with the DRV8255 for faster speed and better quality.

5. The stepper motor driver adds a self-recovery fuse. When a short circuit or fault occurs, the power will be cut off and the fault indicator will be displayed.

6,12V step-down increase the self-recovery fuse, when a short circuit occurs, the power can be cut off in time to avoid damage.

7, optimize the layout, the control area is separated from the drive area, and the operation is more stable.

8, increase the plastic protective cover to avoid short circuit.

9, increase the heat sink to avoid burning the control panel.

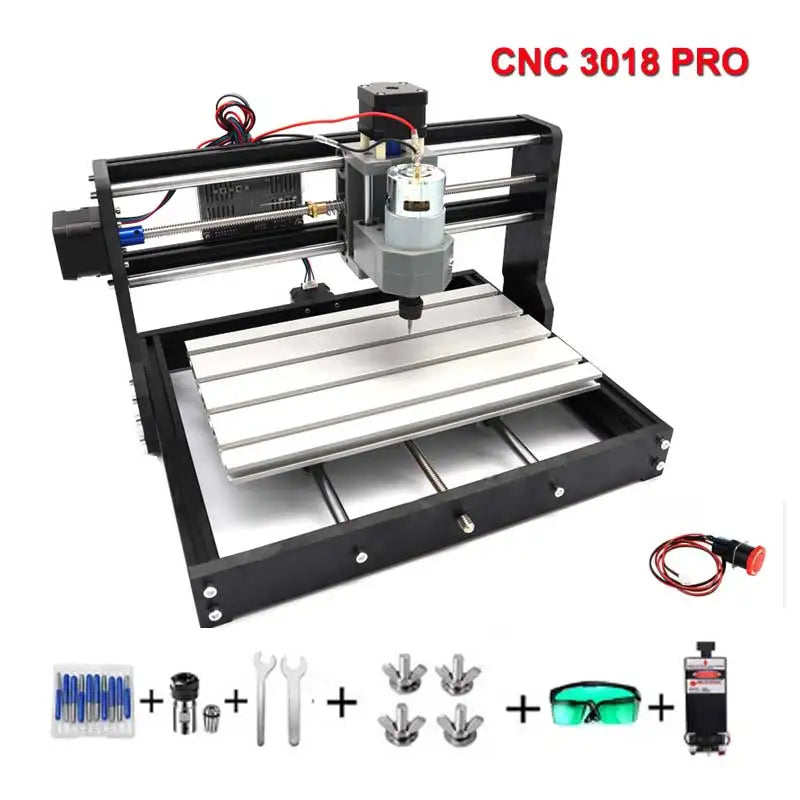

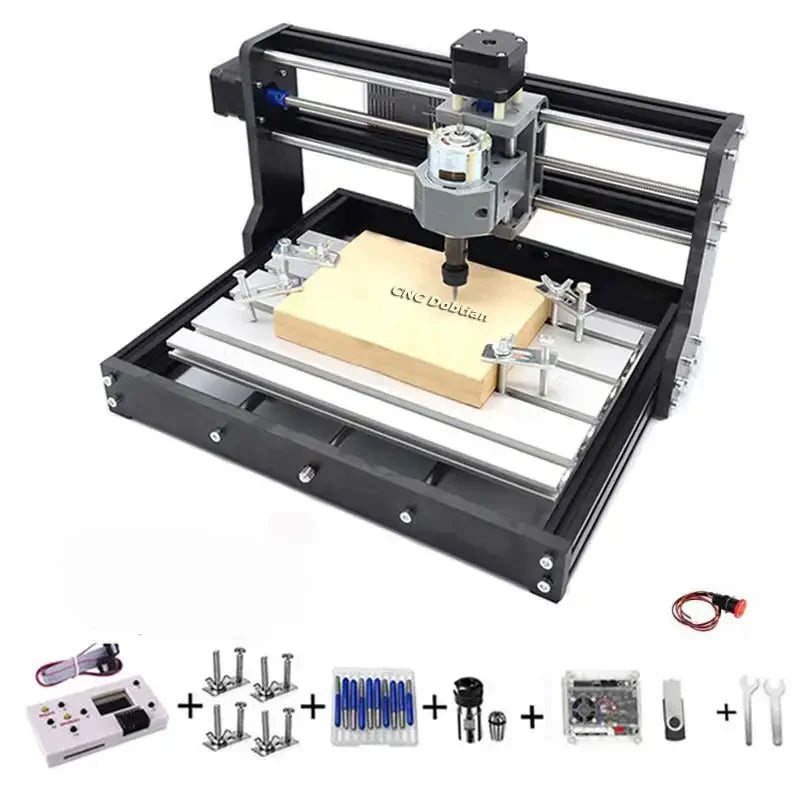

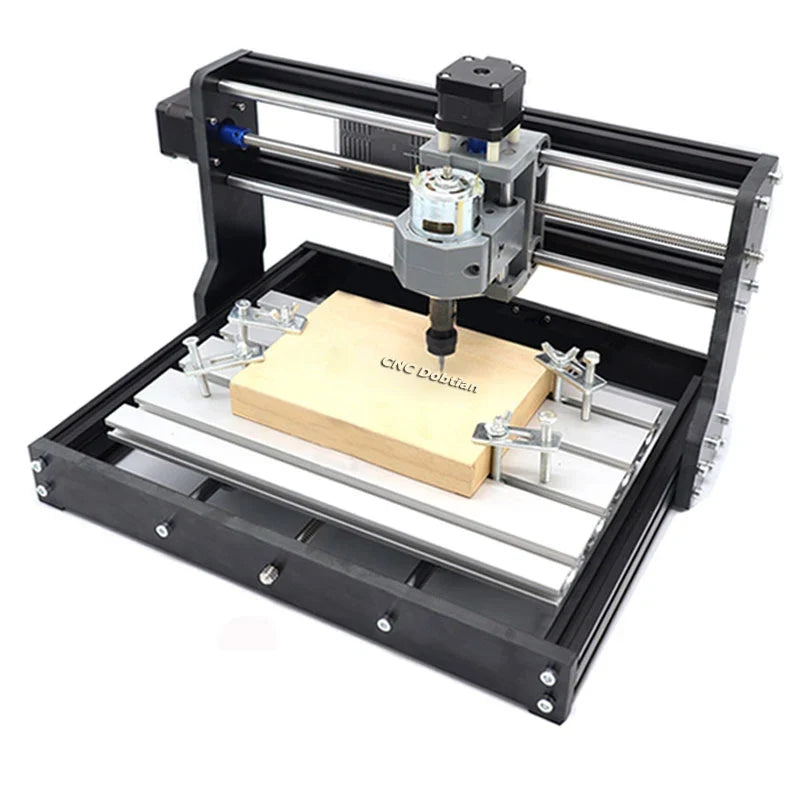

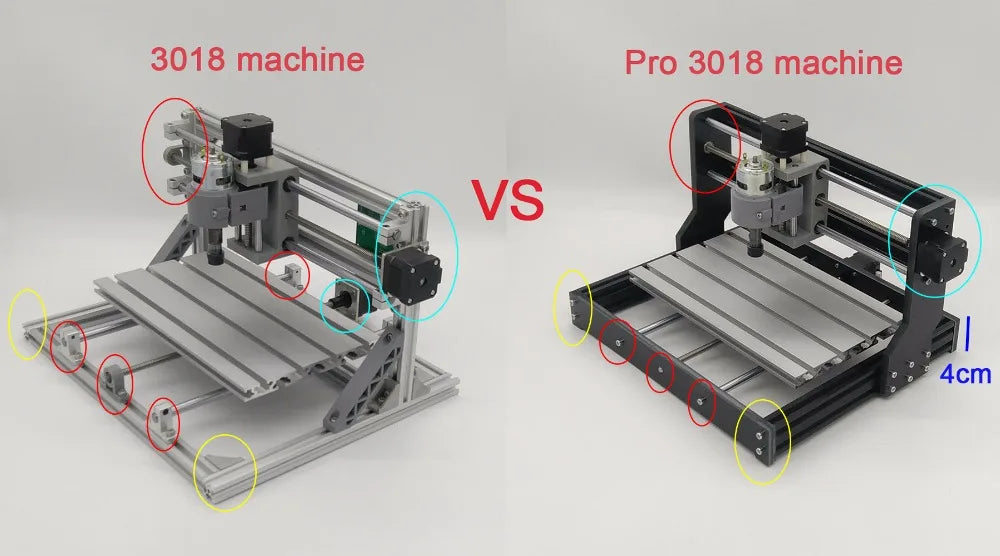

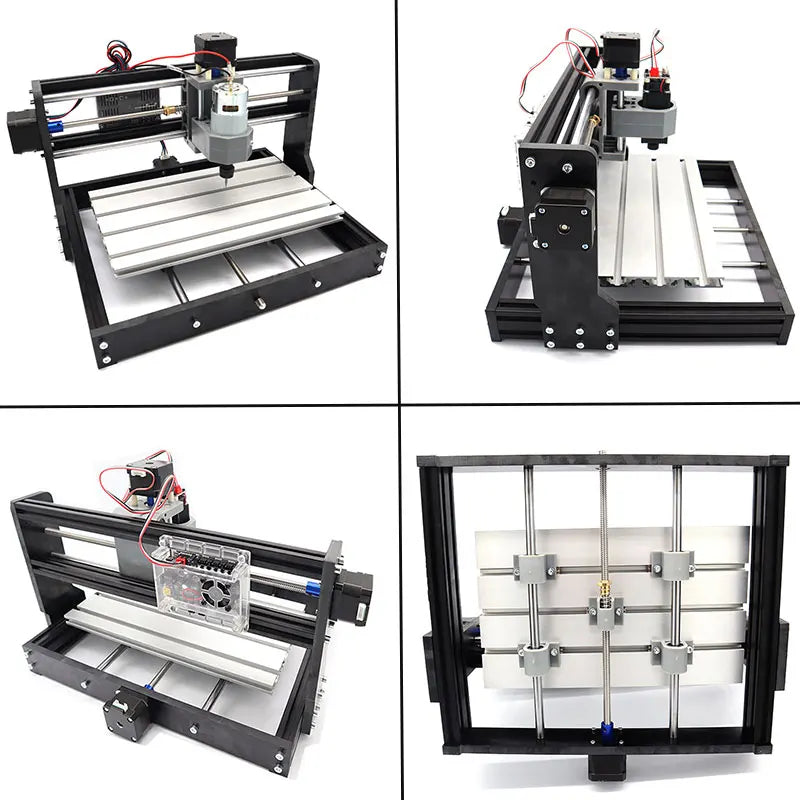

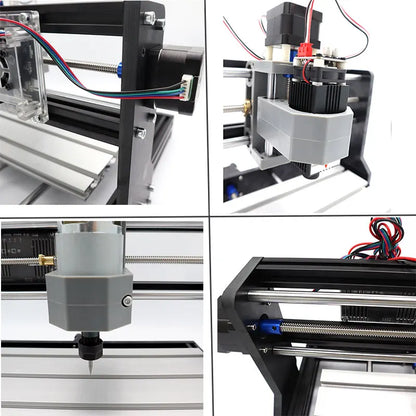

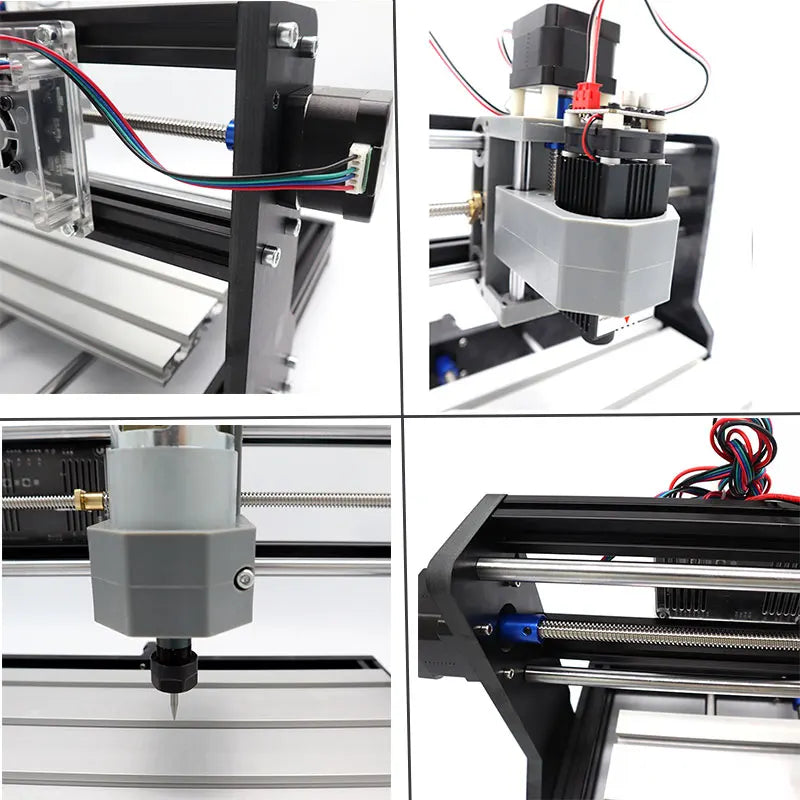

◆The main advantage of 3018 pro !

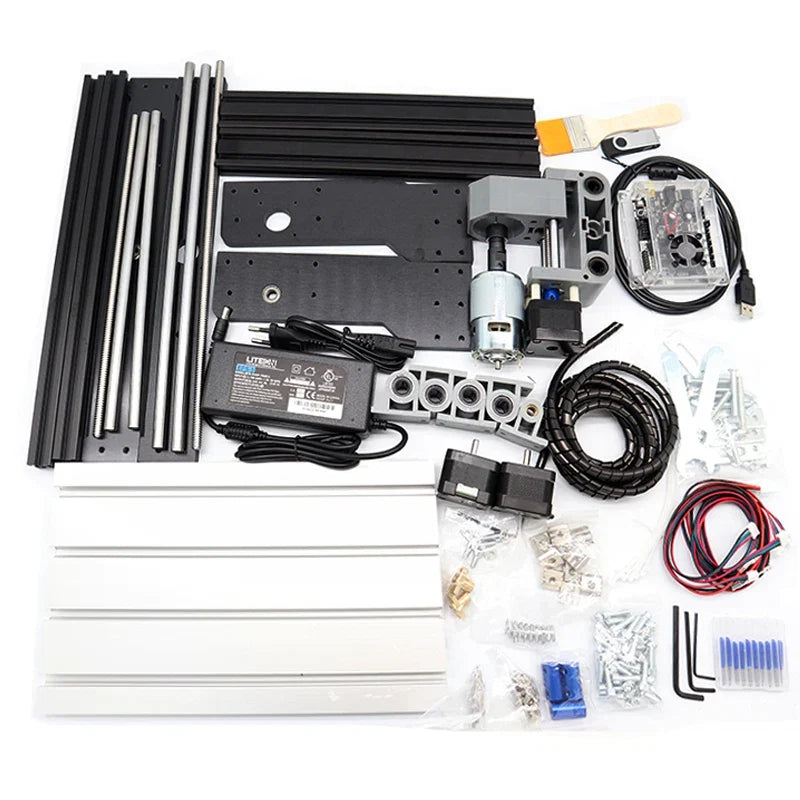

The structure is stable, the appearance is simple, and the assembly difficulty is reduced. Now the 3018Pro machine only takes about 20 minutes to complete the assembly.
